200RT

Home   ›   Products   ›   Specialty Machines   ›   Turnovers   ›   200RT

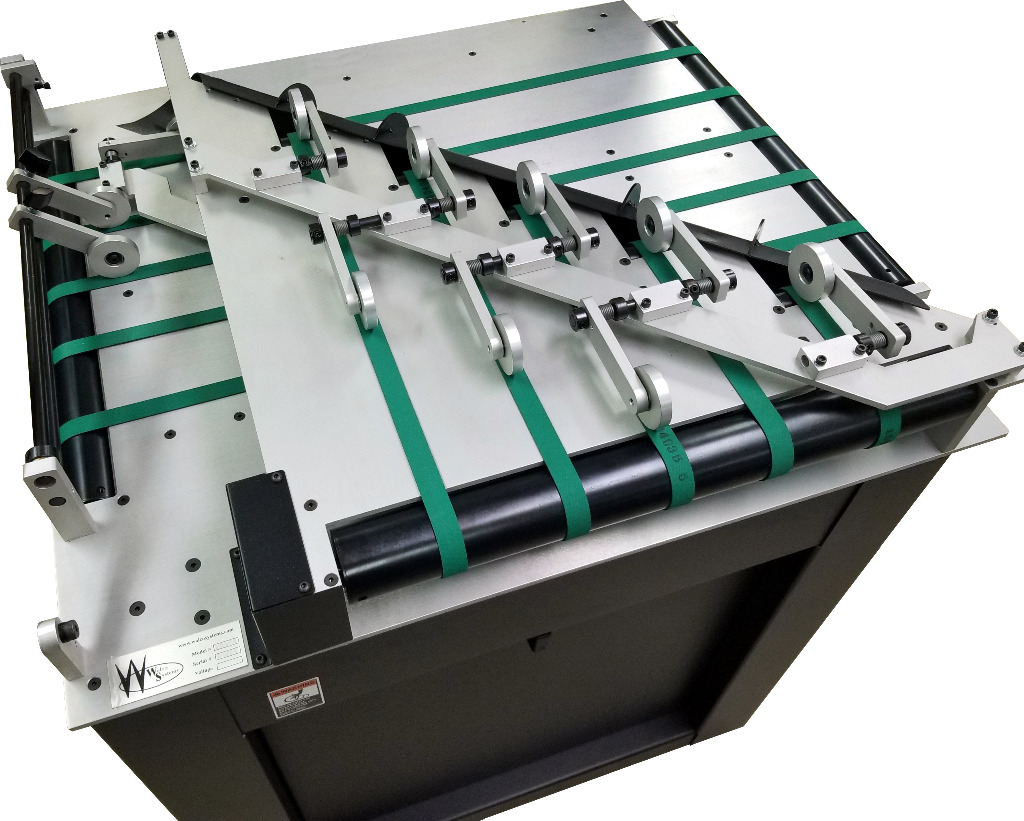

The 200RT offers an innovative way to turnover large sheets and delivers them in the same orientation at a right angle. This allows a variety of processes to be added in-line, dramatically increasing productivity. Set-up couldn’t be simpler – all standard sheet sizes are to be center justified over the belts, so no adjustment is necessary. The 200RT utilizes the same rigid construction and easy maintenance that Walco Systems has built its reputation on.

View Demo Videos

Specifications

200RT

Material Size: Min. 6"L, 8.5-20"W
Material Thickness: 20# to 100# Sheets
Physical: 35.5"L x 32"W x 33-35"H (infeed), 37-39"H (outfeed), 39-41"H (physical)
Electrical: 110VAC Single Phase, 10Amps

Features

  • Quick and Easy Setup
  • Non-Proprietary Components
  • Variable Speed Transport

Uncompromising Drivetrain

  • Large Diameter Steel Shafts
  • Steel Drive Pulleys
  • Steel Rollers
  • Sealed Shaft Locking Collar Bearings
