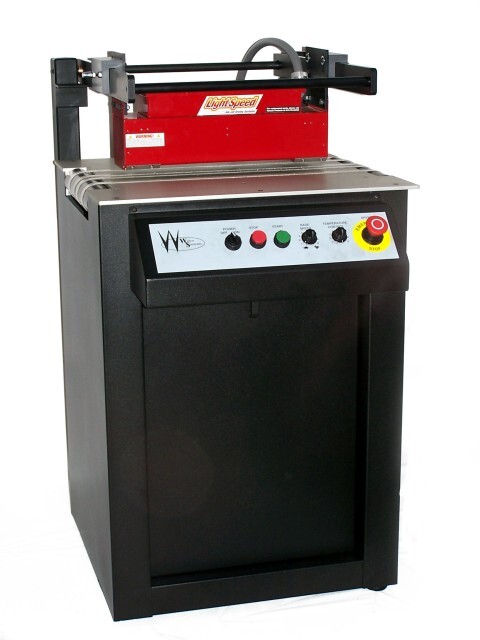

The series 240D is a complete compact drying system. Quality components featuring durable full frame construction. The upstream product detection provides energy savings and extends transport component life.
Download Brochure
Features
- Full Frame Construction
- Triple Safety Interlocks With Operator E-Stop
- Integrated Temperature Control
- 12" Wide Steel Transport Rollers
- Center Table Vacuum
- Variable Speed Transport
- Adjustable Heat Belts
IR Dryers
- Faster Line Speeds
- Prolonged Lamp Life
- Utilizes High Efficiency Infrared Lamps
8000 Watt IR
| Drying Area: |
5" x 16" |
| Voltage: |
240V, 1-Phase |
| Current: |
34 Amps |
6400 Watt IR
| Drying Area: |
4" x 16" |
| Voltage: |
240V, 1-Phase |
| Current: |
27 Amps |
4000 Watt IR
| Drying Area: |
4" x 10" |
| Voltage: |
240V, 1-Phase |
| Current: |
17 Amps |
Options
Speed Following
Allows Walco System feeders & transports to maintain matching belt speeds, using one speed control.
Upstream Product Interlock Sensor
The interlock allows the dryer to turn on only while product is flowing. This helps increase belt life, bulb life and reduce energy consumption.
Upstream Stop Interlock
This option allows the dryer base to stop other equipment ahead of it.
| Dryer Bases |
350D |
240D |
| IR (Infrared) |
|
|
| 4000W |
✔ |
✔ |
| 6400W |
✔ |
|
| 8000W |
✔ |
|
| NIR (Near Infrared) |
|
|
| 2400W |
✔ |
✔ |
| 6480W |
✔ |
✔ |
| 9720W |
✔ |
|
NIR (Near Infrared) Dryers
NIR is cost effective high output drying systems designed for inkjet systems. This new breed of dryers offer greater productivity with reduced operating costs compared to traditional drying systems.
- Faster Line Speeds
- Higher Energy Wave Lengths
- Lower Electrical Consumption Over IR
- Lower Belt &Machine Temps.
9720 Watt NIR
| Drying Area: |
4.25" x 16" |
| Voltage: |
240V, 1-Phase |
| Current: |
40.5 Amps |
6480 Watt NIR
| Drying Area: |
4.25" x 10" |
| Voltage: |
240V, 1-Phase |
| Current: |
27 Amps |
2400 Watt NIR
| Drying Area: |
3" x 6" |
| Voltage: |
240V, 1-Phase |
| Current: |
10 Amps |
