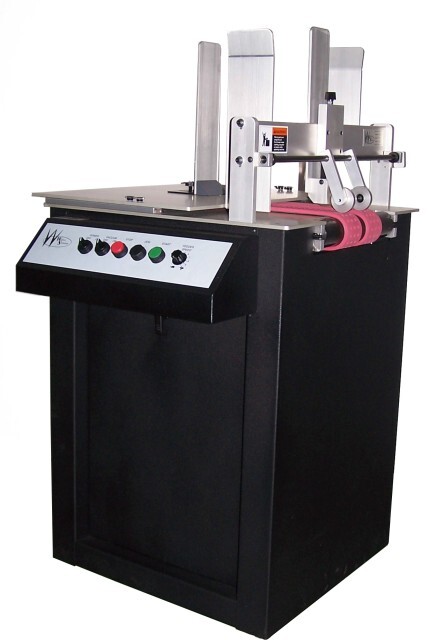

VF200
The VF200 offers a radically innovative design not available anywhere else.
Every part in this feeder - from the precision machined guides, to the sealed shaft locking collar bearings - was designed to take an outstanding amount of abuse. Over 50 inches of two (2) 2-1/2 inch wide belts offer an astonishing amount of friction. Add vacuum to the equation and you have a machine capable of pulling any product.
Like all Walco Systems products, the Evolution series feeders are designed for the high capacity use demanded by today's commercial environment.
Specifications
VF200
| Material Size: | Min. 3"W x 5"L - Max 19.5"W x 28"L |
| Material Thickness: | 1" Max (In Standard Configuration) |
| Electrical: | 110 VAC 1-Phase 10 Amp Circuit |
| Interlock: | Dry Contact (Low Volt) Standard |
| Operator Controls: | Power (on/off), Vacuum (on/off), Stop, Jog, Start, Feed Speed |
| Physical: | 24"L x 28.5"W x 33-36" H |
Features
- Quick and Easy Setup
- Variable Speed Transport
- Adjustable Infeed Product Guides
- Ergonomic Operator Panel
- Feeds Wide Variety of Products
- High Capacity Feed Hopper
- Independently Controlled Self-Contained Vacuum
- Non-Proprietary Components
Uncompromising Drivetrain
- High Torque Gear Drive Motor
- Steel Drive Pulleys
- 12" Wide Steel Rollers (20" on VF280")
- Large Diameter Steel Shafts
- Sealed Shaft Locking Collar Bearings
Feeds
- Bags
- Envelopes
- Heavy Card Stocks
- Corrugated Cardboard
- Jewel Cases
- Perfect Bound Books
- Calendars
- Sheet Stocks
Which Walco Systems VF Feeder is the right one for me?
