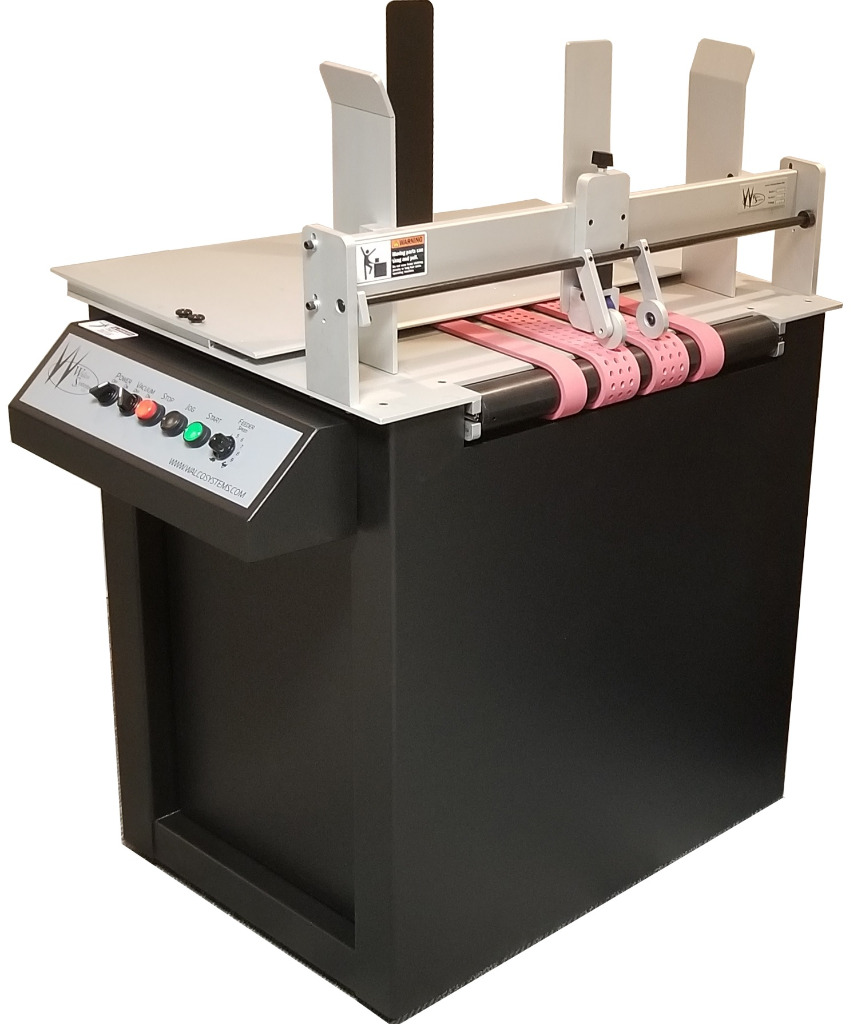

VF280
Employing every concept that makes up the VF200, the VF280 ups the ante and allows for wider pieces to be fed. Designed primarily for cardboard, this machine allows products to contact 180 square inches of natural gum rubber belting.
Specifications
VF280
| Material Size: | Min. 3"W x 5"L - Max 29"W x 28"L |
| Material Thickness: | 1" Max (In Standard Configuration) |
| Electrical: | 110 VAC 1-Phase 10 Amp Circuit |
| Interlock: | Dry Contact (Low Volt) Standard |
| Operator Controls: | Power (on/off), Vacuum (on/off), Stop, Jog, Start, Feed Speed |
| Physical: | 24"L x 37.5"W x 33-36" H |
Features
- Quick and Easy Setup
- Variable Speed Transport
- Adjustable Infeed Product Guides
- Ergonomic Operator Panel
- Feeds Wide Variety of Products
- High Capacity Feed Hopper
- Independently Controlled Self-Contained Vacuum
- Non-Proprietary Components
Uncompromising Drivetrain
- High Torque Gear Drive Motor
- Steel Drive Pulleys
- 12" Wide Steel Rollers (20" on VF280")
- Large Diameter Steel Shafts
- Sealed Shaft Locking Collar Bearings
Feeds
- Bags
- Envelopes
- Heavy Card Stocks
- Corrugated Cardboard
- Jewel Cases
- Perfect Bound Books
- Calendars
- Sheet Stocks
